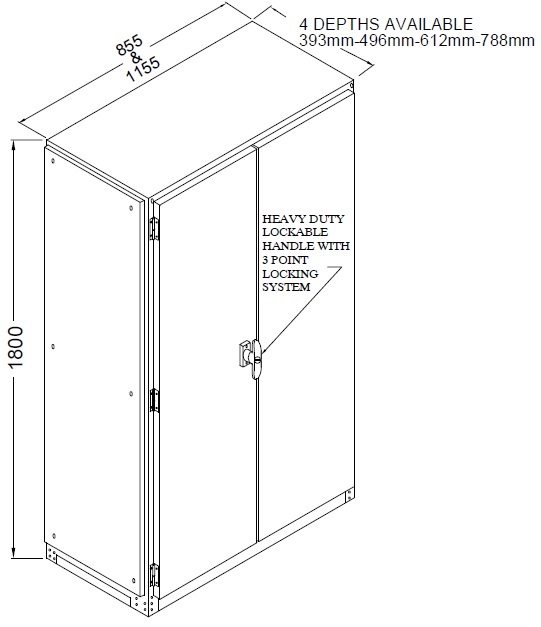

Steel Cupboards S200



REF No.	D8	D9	D10	D11	E1	E2	E3	E4
HEIGHT	1800mm	1800mm	1800mm	1800mm	1800mm	1800mm	1800mm	1800mm
WIDTH	855mm	855mm	855mm	855mm	1155mm	1155mm	1155mm	1155mm
DEPTH	395mm	496mm	612mm	788mm	393mm	496mm	612mm	788mm
PRICE	$498	$523	$578	$623	$569	$599	$659	$726
EXTRA SHELF	S20.60 806 x 387mm	S27.50 806mm x 606mm	$33.00 806mm x 606mm	$45.15 806mm x 782mm	$27.70 1106mm x 388mm	$30.35 1106mm x 490mm	$36.95 1106mm x 607mm	$52.90 1106mm x 783mm

PRICES INCLUDE GST



FEATURES
*WATER RESISTANT ROOF $70.00 EXTRA

* HEAVY DUTY LOCKABLE HANDLE WITH A 3 POINT LOCKING SYSTEM
*DEEP STORAGE, FOUR DEPTHS AVAILABLE (393-496-612-788mm)
*EXTRA WIDTH (1155mm)
*3 ADJUSTABLE SHELVES SUPPLIED
*FULLY ASSEMBLED
*A CUPBOARD EXTENDER TO INCREASE HEIGHT TO 2395mm CAN BE ADDED.
* GALVANISED FINISH STANDARD

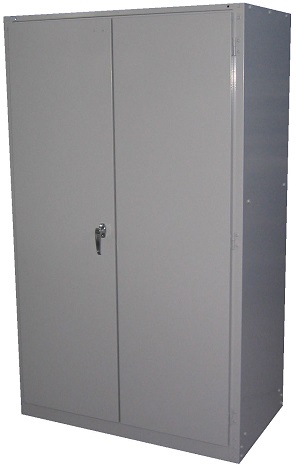

* POWDERCOAT FINISH AVAILABLE ON ASSEMBLED CUPBOARDS-10 COLOURS - $105-00 EACH

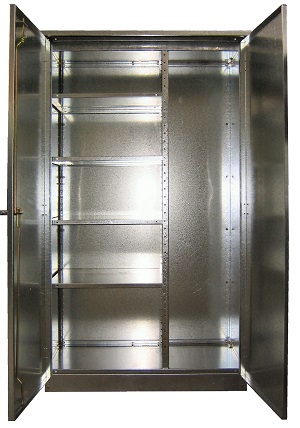

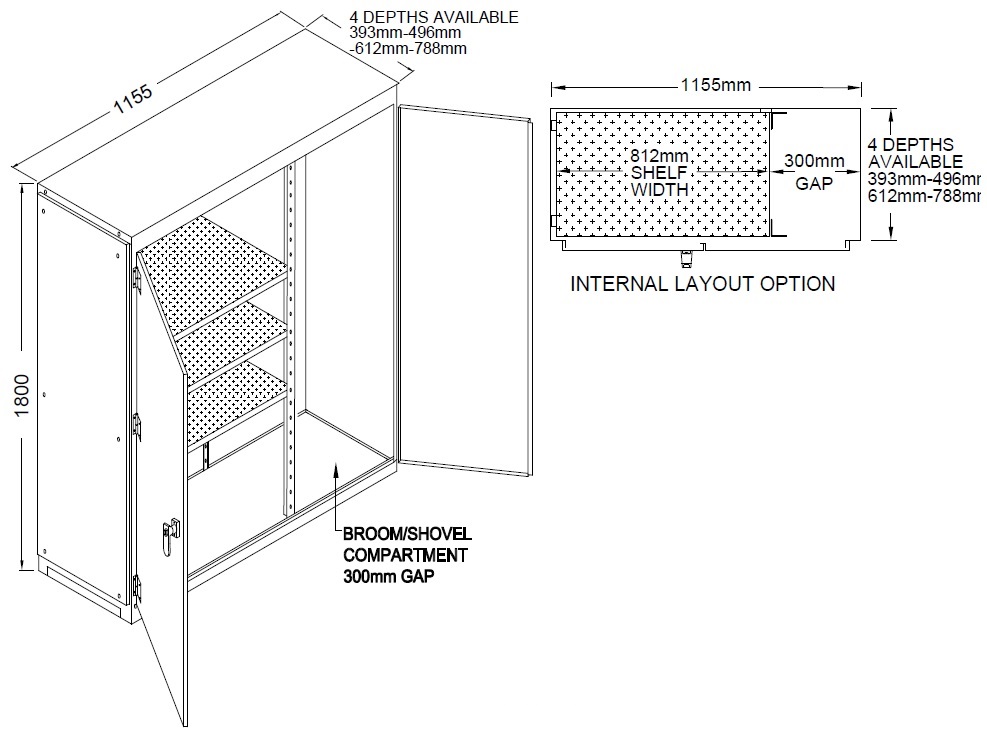

Utility Steel Cupboards S200

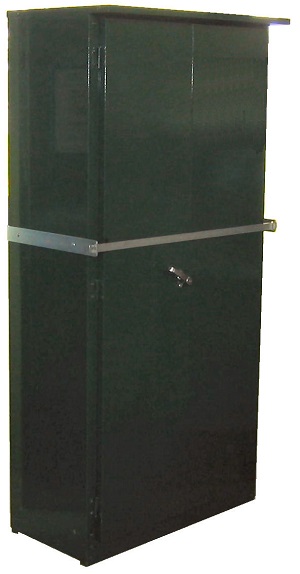

                                                                                                                                                                                                                                                               Additional Security Available

REF No.	U5	U6	U7	U8
HEIGHT	1800mm	1800mm	1800mm	1800mm
WIDTH	1155mm	1155mm	1155mm	1155mm
DEPTH	393mm	496mm	612mm	788mm
PRICE	$575	$600	$655	$700
EXTRA SHELF	$27.50	$27.50	$33.00	$45.15

PRICES INCLUDE GST

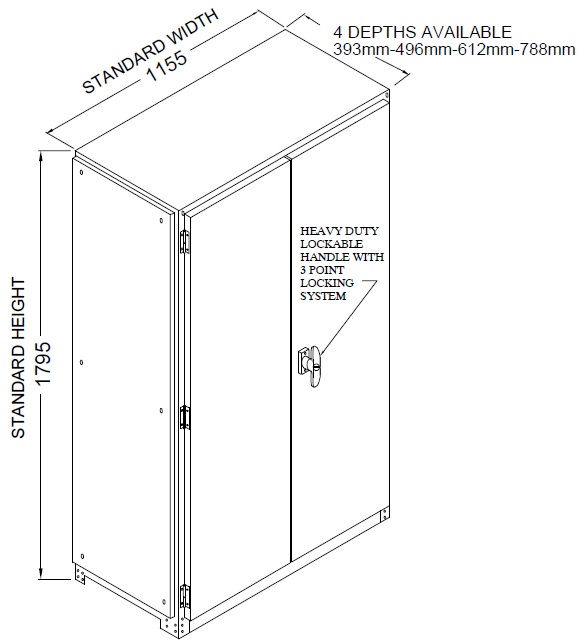

Steel Cupboards S196





REF No.	E1	E2	E3	E4
HEIGHT	1795mm	1795mm	1795mm	1795mm
WIDTH	1155mm	1155mm	1155mm	1155mm
DEPTH	393mm	496mm	612mm	788mm

(ALL CUPBOARDS INCLUDE 3 ADJUSTABLE SHELVES)



FEATURES
*MANY SIZES AVAILABLE
*DEEP STORAGE (393-496-612-788mm)
*EXTRA WIDTH (1155mm)
*3 ADJUSTABLE SHELVES
*FULLY ASSEMBLED
*A CUPBOARD EXTENDER TO INCREASE HEIGHT TO 2395mm CAN BE ADDED

* GALVANISED FINISH STANDARD
* POWDERCOAT FINISH AVAILABLE -10 COLOURS

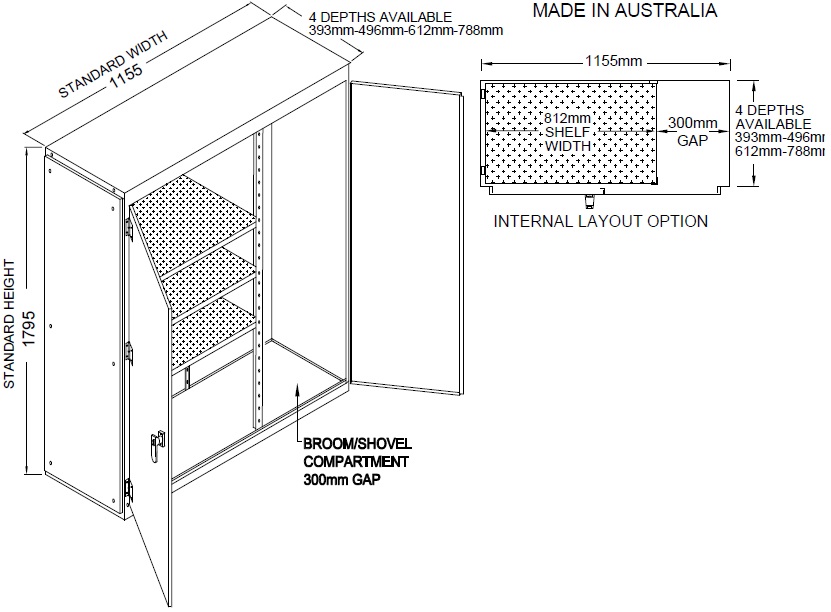

Utility Steel Cupboards S196





REF No.	U5	U6	U7	U8
HEIGHT	1795mm	1795mm	1795mm	1795mm
WIDTH	1155mm	1155mm	1155mm	1155mm
DEPTH	393mm	496mm	612mm	788mm

(ALL CUPBOARDS INCLUDE 3 ADJUSTABLE SHELVES)



FEATURES
*MANY SIZES AVAILABLE
*DEEP STORAGE (393-496-612-788mm)
*EXTRA WIDTH (1155mm)
*3 ADJUSTABLE SHELVES
*FULLY ASSEMBLED
*A CUPBOARD EXTENDER TO INCREASE HEIGHT TO 2395mm CAN BE ADDED

* GALVANISED FINISH STANDARD
* POWDERCOAT FINISH AVAILABLE -10 COLOURS

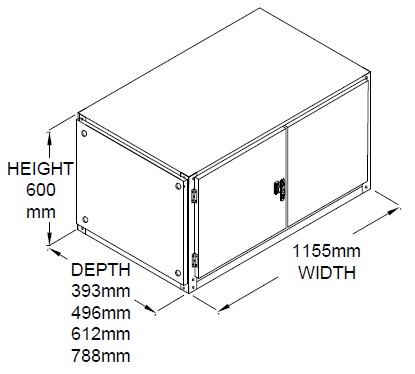

Steel Cupboard Extender S193



REF No.	D12	D13	D14	D15	E5	E6	E7	E8
HEIGHT	600mm	600mm	600mm	600mm	600mm	600mm	600mm	600mm
WIDTH	855mm	855mm	855mm	855mm	1155mm	1155mm	1155mm	1155mm
DEPTH	393mm	496mm	612mm	788mm	393mm	496mm	612mm	788mm
Price (no shelf)	$270	$280	$290	$305	$300	$310	$320	$335
Shelf (if required)	$25 each 806mm x 388mm	$28 each 806mm x 490mm	$34 each 806mm x 607mm	$49 each 806mm x 783mm	$27.70 ea 1106mm x 388mm	$30.35 ea. 1106mm x 490mm	$36.95 ea. 1106mm x 607mm	$52.90 ea. 1106mm x 783mm



FEATURES
*GALVANISED OR POWDER COATED FINISHES ARE AVAILABLE (10 COLOURS)
*FULLY ASSEMBLED
*4 DEPTHS AVAILABLE:- 393mm 496mm 612mm 788mm





Other Cupboard Combinations S193

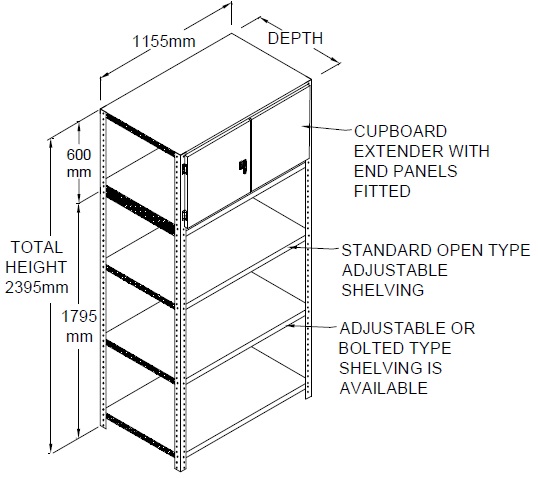

FIGURE No. 1
SHELVING UNIT WITH EXTENDED CUPBOARD ABOVE

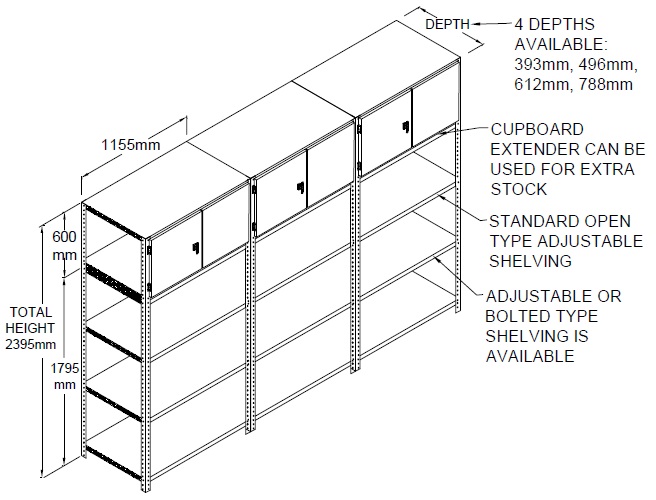

FIGURE No. 2
GROUP OF SHELVING UNITS WITH EXTENDED CUPBOARDS ABOVE FOR EXTRA STOCK

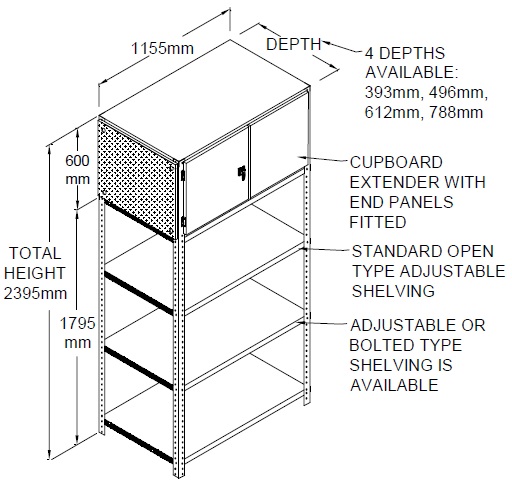

FIGURE No. 3
SHELVING UNIT WITH EXTENDED CUPBOARD ABOVE & CUPBOARD SIDE PANELS FITTED







FIGURE No. 4
UPPER & LOWER CUPBOARD UNIT

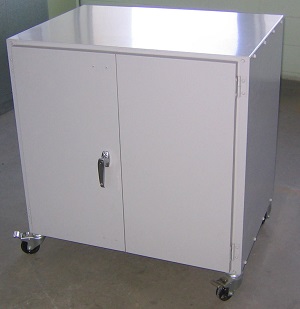

Special purpose cupboards available, please contact us for a quotation.
