Open Angle Type Shelving

Open Angle Type Shelving S174

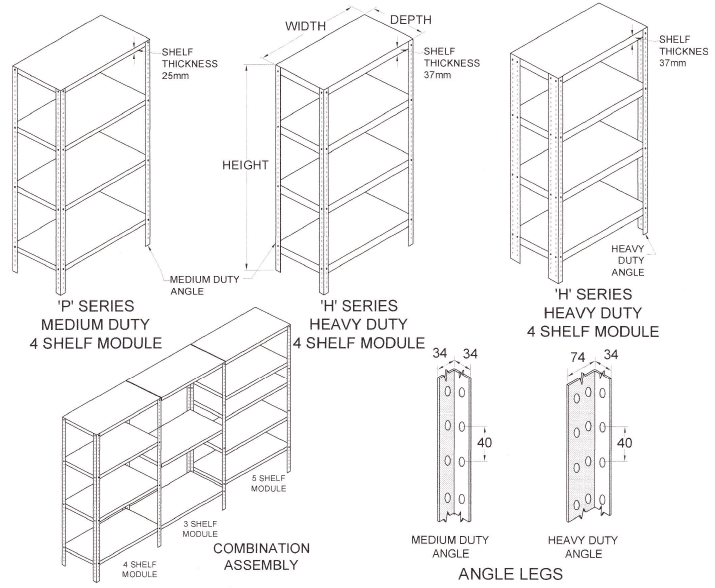

openangleOpen Angle Type Shelving

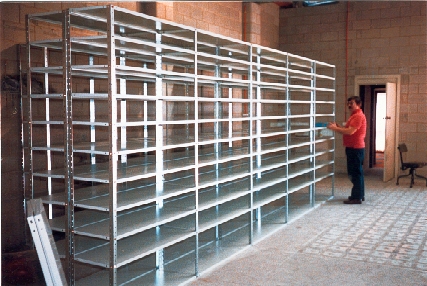

Open angle shelving is suitable for either commercial or domestic use, whether it be a large warehouse, office or garden shed. This type of shelving has no back or side panels.

The steel shelves are bolted to the angle uprights at your desired height. You can add shelves or alter their positions at any time with little effort.

There are many different sizes and option available. Floor guards and corner gussets are an optional extra. Galvanised or painted finish is available.

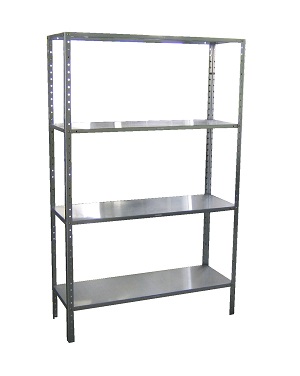

P Series (standard)
Recommended maximum distributed loading per shelf: 80 kg
Height*
Width
Depth
1785
2383
MD Angle
864
900
300
400
500
600
1122
300
400
500
600

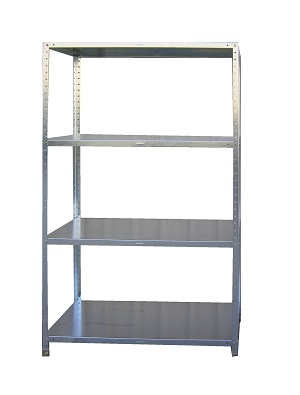

H Seri es (heavy duty)
Recommended maximum distributed loading per shelf: 100 kg (up to 225 kg with reinforcement)
Height*
Width
Depth
1785
2383
MD or HD Angle
812
393
496
612
788
1112
1412
1712
196
296
393
496
612
788
All dimensions in mm
* Heights can be varied





Shelf Pitch Table P Series

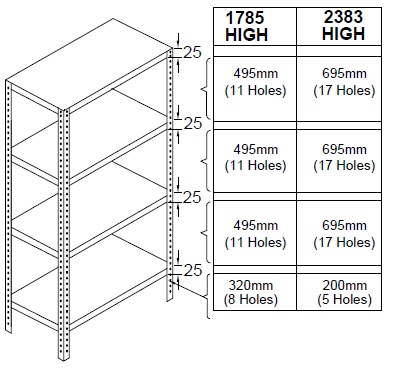

4 Shelves



shelf-pitch-table-p-series-4shelfShelf Pitch Table

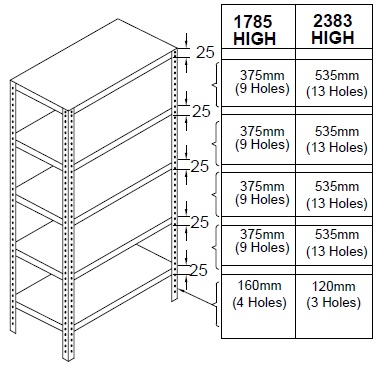

5 Shelves



shelf-pitch-table-p-series-5shelfShelves

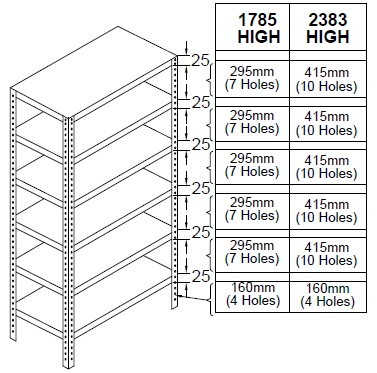

6 Shelves



shelf-pitch-table-p-series-6shelf



Shelf Pitch Table H Series

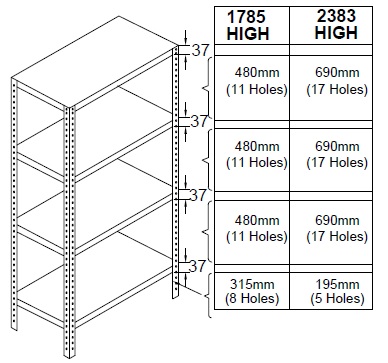

4 Shelves



shelf-pitch-table-h-series-4shelf

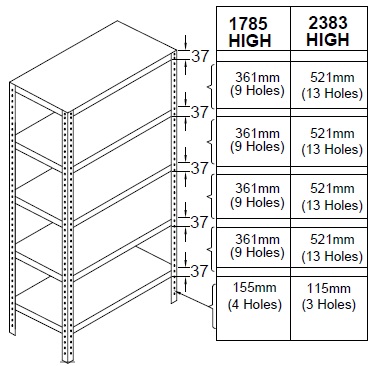

5 Shelves



shelf-pitch-table-h-series-5shelf

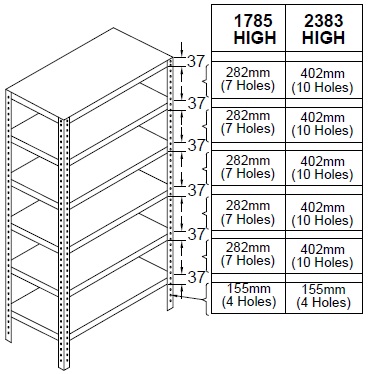

6 Shelves



shelf-pitch-table-h-series-6shelf
